MiniMed™ Mobile app training

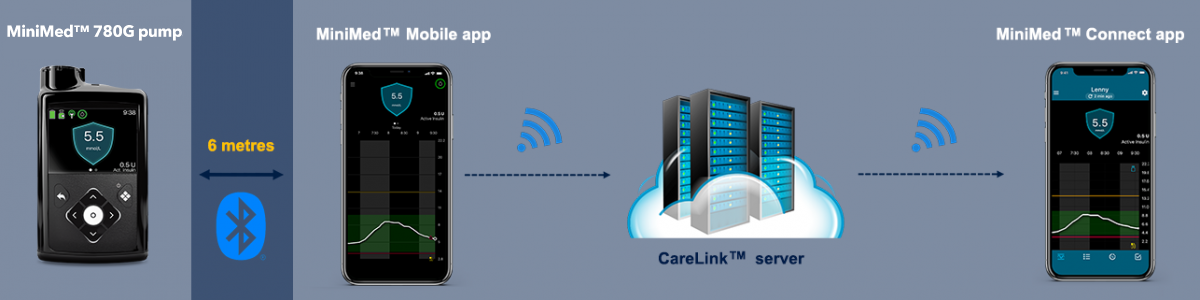

1. Pump & App Requirements:

   • The MiniMed^™ 780G pump needs to be within 6 metres of the MiniMed^™ Mobile app
   • The app needs to be open, in the foreground or background
   • The MiniMed^™ Mobile app displays pump and sensor data on a compatible smartphone through a Bluetooth^® connection



2. Smartphone requirements to communicate to CareLink^™ software through the app

   • An internet connection
   • Sync to CareLink^™ option turned ON

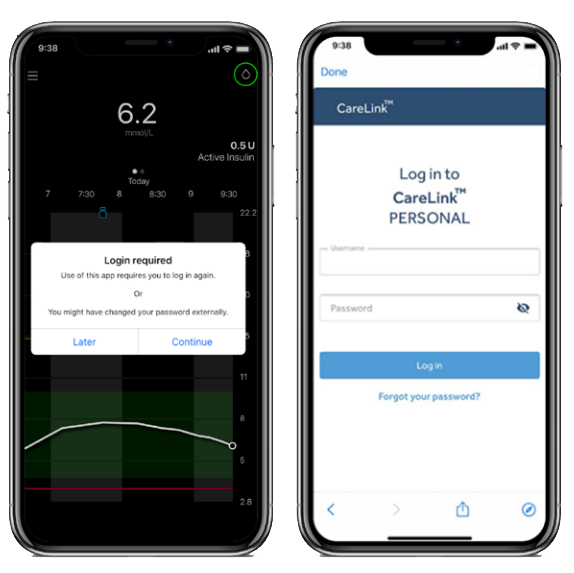

   • Stay logged into the CareLink^™ software (check once weekly to make sure you are logged in)
   • Keep the app open (either in foreground or background)
   • In addition, the requirement for the pump and app to be within 6 metres as stated above



3. Turn off “automatic updates” on your phone

   To disable & manually update on android^™

   • Go to Settings > Software Update
   • Toggle “Download updates automatically” to off position
   • Choose “Download updates manually” to update software only after checking Medtronic website to ensure compatibility with the MiniMed^™ Mobile app

   To disable & manually update on iOS

   • Go to Settings > General > Software Updates
   • Tap Automatic Updates
   • Turn toggle to the “off” position
   • Check Medtronic website to ensure compatibility with the MiniMed^™ Mobile app
   • Go to Settings > Software Update
   • Tap Download and Install

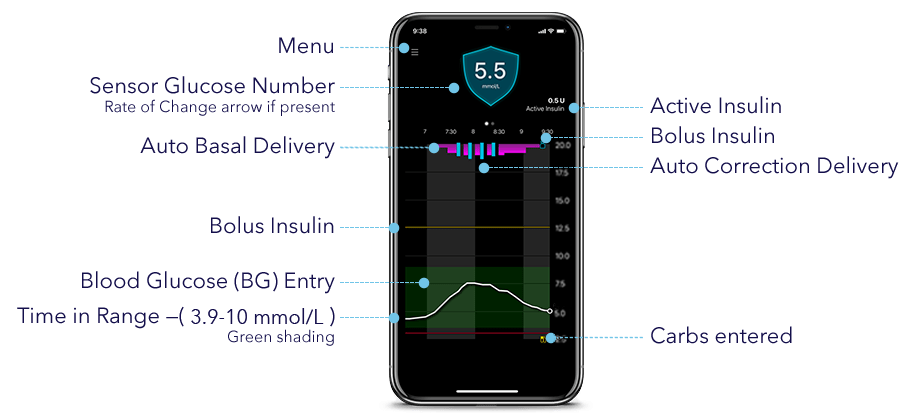

Home Screen

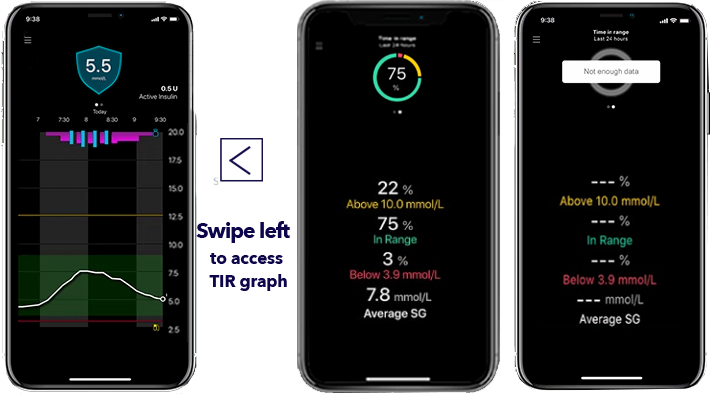

Time in Range Screens

If using continuous glucose monitoring (CGM), swipe left to access time in range data and graphs for the last 24-hours.

Time in Range (TIR) data reflects the last 24 hours and requires a minimum of one sensor glucose (SG) value to display any data.

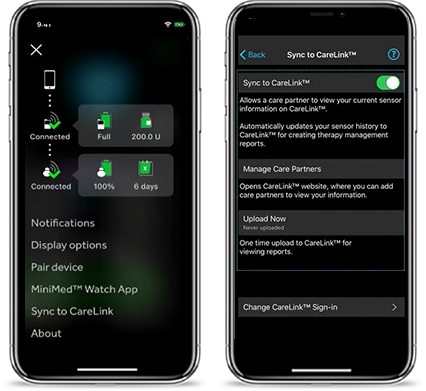

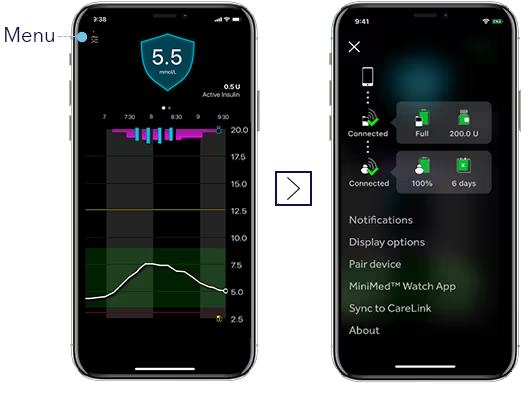

1. The SYSTEM STATUS ICONS on the Menu screen show you the status of your pump and any additional paired devices. The status icon appears on the Home screen, if any status needs attention.








   • Pump Connection to the app
   • Transmitter Connection to the pump
   • Pump Battery
   • Transmitter Battery
   • Reservoir Units
   • Sensor Life




   * These images are similar to pump icons

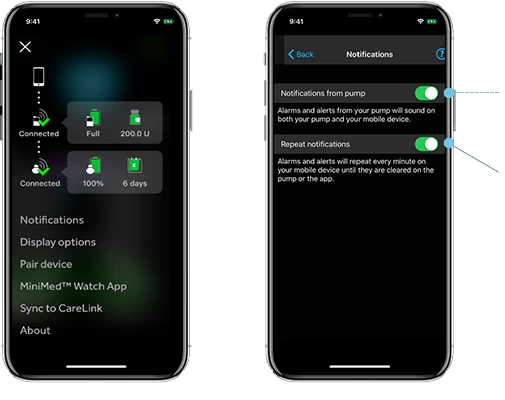

2. Notifications must be on to receive pump alerts, alarms and reminders from the pump.








   In order to receive notifications in the form of:

   • ALERTS
   • ALARMS
   • MESSAGES
   • REMINDERS




   Notifications from the pump must be toggled ON!

   When repeat notifications is on, app notifications will repeat every minute

3. Notifications basics:

   • Notifications will appear at the top of the Home screen in the app
   • When app isn’t opened, notifications will appear as all notifications from apps appear
   • All alerts and alarms can be dismissed on the app, but the alerts and alarms can ONLY be cleared on the pump
   • If Repeat Notifications is on, the notification will repeat every minute
   • If notifications are off or the phone is set to Do Not Disturb, notifications will not be received through the app

The MiniMed^™ Mobile app (Version 1.2 and higher) is also compatible with Apple^® Watch*. You can monitor your values on your watch face or tap to enter the app. You must connect your Apple^® Watch with your compatible iPhone^® device to get alerts and notifications on your watch. The watch communicates with the iPhone^® device, not the insulin pump, so if your iPhone^® device is out of range, you will not get updated glucose information on your watch.

Installing MiniMed^™ Mobile on your Apple^® Watch

1. Make sure your Apple^® Watch and iPhone^® device are connected. You can check this in your Bluetooth^® settings and use the Apple Watch User Guide if it’s not.
2. Download the MiniMed^™ Mobile app from the App Store on your iPhone^® device if you haven’t done so already.

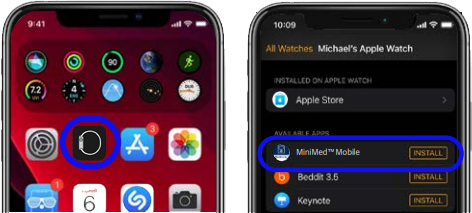

3. Next, you need the companion app on your Apple^® Watch. If this does not happen automatically, there are two ways of doing it manually:

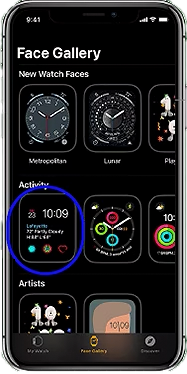

Watch faces and complications

Complications are pieces of information from apps that appear on a watch face. Installing the MiniMed^™ Mobile app complication allows you to quickly access your sensor glucose on your Apple^® Watch. You can add complications to your Watch to make MiniMed^™ Mobile app easier to use, here’s how with the Apple^® Watch.

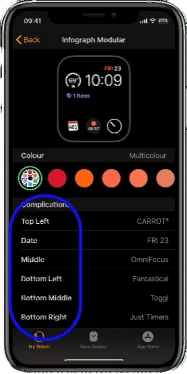

1. With the watch face showing, touch and hold the display then tap Edit.
2. Swipe left all the way to the end and tap on the complication node you wish to use.

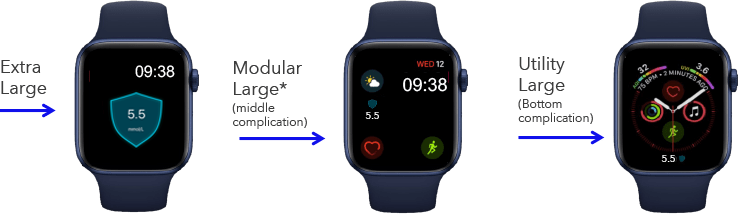

3. Use the digital crown to scroll through the options. MiniMed^™ Mobile has three complications that can be used, choose the one that best suits you:

* Not supported in WatchOS 9

Note - Do not add a color or tint modification to your chosen watch face. This can cause the MiniMed^™ Mobile app to become difficult to read.

The MiniMed™ Mobile app currently supports these complications: Activity Analog, Activity Digital, Explorer, Mickey Mouse, Motion, Photos, Utility, Astronomy, Breathe, Kaleidoscope, Liquid Metal, Fire and Water, Nike Analog, Portraits, Solar Graph, Timelapse, Toy Story, and Vapor.

Our team is working to bring support to additional complications and watch faces. Access this webpage from your phone, so you can download the complications and easily set them up.

Smartphone connectivity from the pump

Automatic uploads:

• Every five minutes to CareLink™ Personal
• Every 24 hours for CareLink™ report creation

Manual uploads:

• Can push to upload through “Upload Now” option on the app

• The app needs to be connected to the internet for initial start-up, but not daily use
• However, internet is needed for sending data to CareLink™ and the CareLink™ Connect app

• If you do not have a compatible smartphone, you will not be able to use the app
• You will use the regular pump screen for viewing data and will need to use the Blue Adapter for manual downloads

• iOS – swipe up to close
• Android – “force close”

• The pump and app will be in search mode when far apart
• The search can impact battery levels
• We recommend keeping the pump and app within 20 feet or 6 meters of each other
